Fibreglass Materials, Fabrics and Matting
Nivitex Fibreglass and Resin manufacture a range of fibreglass materials such as Woven Rovings, Woven Tapes etc. and supplies Chopped Strand Matt, Combination Fabrics, C-Glass Tissue, Continuous Matts and RTM Infusion core materials.

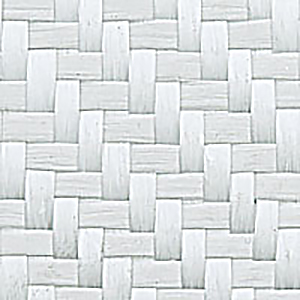

Bi-Directional Woven Roving is fibreglass fabric that is made by interweaving direct rovings, resulting in a uniform tension. Used for high performance reinforcement applications with high dimensional stability and easy handling.
TexiFab - Bi-Directional Woven Roving

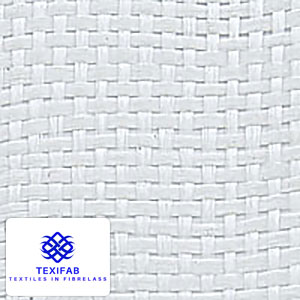

BD195P
Weaves: Plain
Product description
5 meter roll
- 1.26kg
- 6.46sqm
- Width: 1300mm
90 meter roll
- 23kg
- 117sqm
- Width: 1300mm

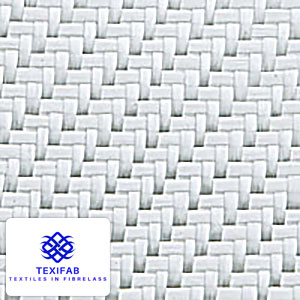

BD280T
Weaves: Twill
Product description
5 meter roll
- 1.82kg
- 6.5sqm
- Width: 1300mm
93 meter roll
- 34kg
- 121sqm
- Width: 1300mm
102 meter roll
- 37.24kg
- 133sqm
- Width: 1300mm

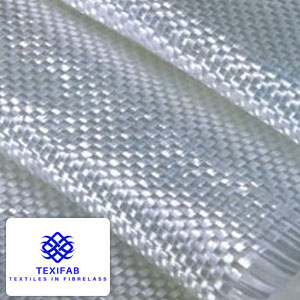

BD400P
Weaves: Plain
Product description
96 meter roll
- 50kg
- 125sqm
- Width: 1300mm

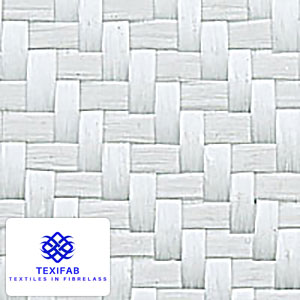

BD450P
Weaves: Plain
Product description
102 meter roll
- 37.24kg
- 133sqm
- Width: 1300mm

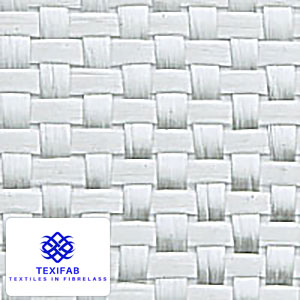

BD600P
Weaves: Plain
Product description
55 meter roll
- 43kg
- 71sqm
- Width: 1300mm

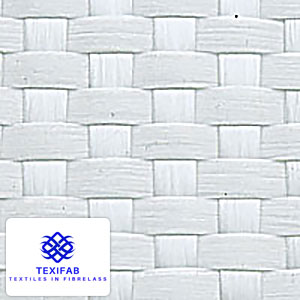

BD800T
Weaves: Twill
Product description
50 meter roll
- 52kg
- 65sqm
- Width: 1300mm

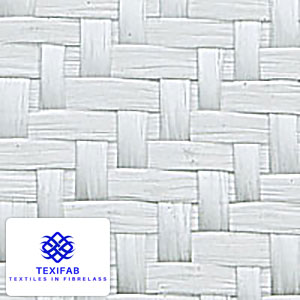

BD1350T
Weaves: Twill
Product description
38 meter roll
- 144kg
- 106sqm
- Width: 1350mm
Weaving off a Kriel
A woven fiberglass fabric made by interlacing continuous fiberglass yarns in a regular pattern.
The weave provides strength, stability, and good resin absorption, making it suitable for composite manufacturing.
A woven fiberglass fabric is produced by weaving fiberglass yarns together at right angles:
- Warp – the yarns running lengthwise.
- Weft (fill) – the yarns woven across the width.
This creates a strong, stable fabric that can be laminated with polyester, vinyl ester, or epoxy resin.
